Chapter 1 - Speaking Mathematically

Entry | Solutions

Variables

Definition

Variable

A variable is sometimes thought of as a mathematical “John Doe” because you can use it as a placeholder when you want to talk about something but either (1) you imagine that it has one or more values but you don’t know what they are, or (2) you want whatever you say about it to be equally true for all elements in a given set, and so you don’t want to be restricted to considering only a particular, concrete value for it.

Definition

Three of the most important kinds of sentences in mathematics are universal statements, conditional statements, and existential statements:

• A universal statement says that a certain property is true for all elements in a set. (For example: All positive numbers are greater than zero.)
• A conditional statement says that if one thing is true then some other thing also has to be true. (For example: If 378 is divisible by 18, then 378 is divisible by 6.)
• Given a property that may or may not be true, an existential statement says that there is at least one thing for which the property is true. (For example: There is a prime number that is even.)

The Language of Sets

Notation

Set-roster Notation

If $S$ is a set, the notation $x\in S$ means that $x$ is an element of $S$. The notation $x\cancel{\in }S$ means that $x$ is not an element of $S$. A set may be specified using the set-roster notation by writing all of its elements between braces. For example, $\{1,2,3\}$ denotes the set whose elements are $1$, $2$, and $3$. A variation of the notation is sometimes used to describe a very large set, as when we write $1,2,3,\dots ,100$ to refer to the set of all integers from 1 to 100. A similar notation can also describe an infinite set, as when we write $1,2,3,\dots$ to refer to the set of all positive integers. (The symbol $\dots$ is called an ellipsis and is read “and so forth.”)

Definition

Axiom of Extension

The axiom of extension says that a set is completely determined by what its elements are—not the order in which they might be listed or the fact that some elements might be listed more than once.

Notation

• $R$: the set of all real numbers
• $Z$: the set of all integers
• $Q$: the set of all rational numbers, or quotients of integers

Notation

Set-Builder Notation

Let $S$ denote a set and let $P(x)$ be a property that elements of $S$ may or may not satisfy. We may define a new set to be the set of all elements $x$ in $S$ such that $P(x)$ is true. We denote this set as follows:

$$\{x\in S|P(x)\}$$

Definition

Subsets

If $A$ and $B$ are sets, then $A$ is called a subset of $B$, written $A\subset B$, if, and only if, every element of $A$ is also an element of $B$.

$$A\subset B\text{ meant that for every element x, if}x\in A\text{ then }x\in B$$

The phrases $A$ is contained in $B$ and $B$ contains $A$ are alternative ways of saying that $A$ is a subset of $B$.

Definition

Proper subset

Let $A$ and $B$ be sets. $A$ is a proper subset of $B$ if, and only if, every element of $A$ is in $B$ but there is at least one element of $B$ that is not in $A$.

Notation

Ordered Pair

Given elements $a$ and $b$, the symbol $(a,b)$ denotes the ordered pair consisting of $a$ and $b$ together with the specification that $a$ is the first element of the pair and $b$ is the second element. Two ordered pairs $(a,b)$ and $(c,d)$ are equal if, and only if, $a=c$ and $b=d$. Symbolically:

$$(a,b)=(c,d)\text{ means that }a=c\text{ and }b=d$$

Definition

Ordered n-tuple

Let $n$ be a positive integer and let $x_1,x_2,\dots ,x_n$ be (not necessarily distinct) elements. The ordered n-tuple, $(x_1,x_2,...,x_n)$, consists of $x_1,x_2,\dots ,x_n$ together with the ordering: first $x_1$, then $x_2$, and so forth up to $x_n$. An ordered 2-tuple is called an ordered pair, and an ordered 3-tuple is called an ordered triple. Two ordered n-tuples $(x_1,x_2,\dots ,x_n)$ and $(y_1,y_2,\dots ,y_n)$ are equal if, and only if, $x_1=y_1$, $x_2=y_2$, $...$ , and $x_n=y_n$. Symbolically:

$$(x_1,x_2,\dots ,x_n)=(y_1,y_2,\dots ,y_n)<=>x_1=y_1,x_2=y_2,\dots ,x_n=y_n$$

Definition

Cartesian Product

Givens sets $A_1,A_2,\dots ,A_n$ the Cartesian product of $A_1,A_2,\dots ,A_n$ denoted,

$$A_1\times A_2\times \cdots \times A_n,$$

is the set of all ordered n-tuples $(a_1,a_2,\dots ,a_n)$ where $a_1\in A_1,a_2\in A_2,\dots a_n\in A_n$. Symbolically:

$$A_1\times A_2\times \cdots \times A_n=\{(a_1,a_2,\dots ,a_n)|a_1\in A_1,a_2\in A_2,\dots a_n\in A_n\}$$

In particular,

$$A_1\times A_2=(a_1,a_2)|a_1\in A_1\text{ and }{a}_{2}in{A}_2$$

is the Cartesian product of $A_1$ and $A_2$.

Definition

String

Let $n$ be a positive integer. Given a finite set $A$, a string of length $n$ over $A$ is an ordered n-tuple of elements of $A$ written without parentheses or commas. The elements of $A$ are called the characters of the string. The null string over $A$ is defined to be the “string” with no characters. It is often denoted $\lambda$ and is said to have length 0. If $A=\{0,1\}$, then a string over $A$ is called a bit string.

The Language of relations and functions

Definition

Let $A$ and $B$ be sets. A relation $R$ from $A$ to $B$ is a subset of $A\times B$. Given an ordered pair $(x,y)$ in $A\times B$, $x$ is related to $y$ by $R$, written $xRy$, if, and only if, $(x,y)$ is in $R$. The set $A$ is called the domain of $R$ and the set $B$ is called its co-domain. The notation for a relation $R$ may be written symbolically as follows:

$$xRy\text{ means that }(x,y)\in R.$$

The notation $x\cancel{R}y$ means that $x$ is not related to $y$ by $R$:

$$x\cancel{R}y\text{ means that }(x,y)\cancel{\in }R.$$

Notation

Arrow Diagram of a Relation

Suppose $R$ is a relation from a set $A$ to a set $B$. The arrow diagram for $R$ is obtained as follows:

1. Represent the elements of $A$ as points in one region and the elements of $B$ as points in another region.
2. For each $x$ in $A$ and $y$ in $B$, draw an arrow from $x$ to $y$ if, and only if, $x$ is related to $y$ by $R$. Symbolically:

$$\text{Draw an arrow from x to y}$$ $$\text{if, and only if, }xRy$$ $$\text{if, and only if, }(x,y)\in R.$$

Definition

Functions

A function $F$ from a set $A$ to a set $B$ is a relation with domain $A$ and co-domain $B$ that satisfies the following two properties:

1. For every element $x$ in $A$, there is an element $y$ in $B$ such that $(x,y)\in F$.
2. For all elements $x$ in $A$ and $y$ and $z$ in $B$,

$$\text{if }(x,y)\in F\text{ and }(x,z)\in F\text{ then }y=z$$

Notation

If $A$ and $B$ are sets and $F$ is a function from $A$ to $B$, then given any element $x$ in $A$, the unique element in $B$ that is related to $x$ by $F$ is denoted $F(x)$, which is read “$F$ of $x$.”

Note

If $f$ and $g$ are functions from a set $A$ to a set $B$, then

$$f=\{(x,y)\in A\times B|y=f(x)\}\text{ and }g=\{(x,y)\in A\times B|y=g(x)\}.$$

It follows that: $f$ equals $g$, written $f=g$, if, and only if, $f(x)=g(x)$ for all $x$ in $A$.

The Language of Graphs

Definition

Graph

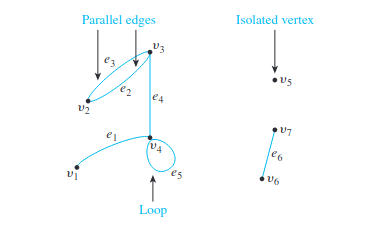

A graph $G$ consists of two finite sets: a nonempty set $V(G)$ of vertices and a set $E(G)$ of edges, where each edge is associated with a set consisting of either one or two vertices called its endpoints. The correspondence from edges to endpoints is called the edge-endpoint function. An edge with just one endpoint is called a loop, and two or more distinct edges with the same set of endpoints are said to be parallel. An edge is said to connect its endpoints; two vertices that are connected by an edge are called adjacent; and a vertex that is an endpoint of a loop is said to be adjacent to itself. An edge is said to be incident on each of its endpoints, and two edges incident on the same endpoint are called adjacent. A vertex on which no edges are incident is called isolated.

Notation

Graphs have pictorial representations in which the vertices are represented by dots and the edges by line segments. A given pictorial representation uniquely determines a graph.

Note

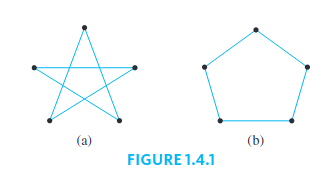

Although a given pictorial representation uniquely determines a graph, a given graph may have more than one pictorial representation. Such things as the lengths or curvatures of the edges and the relative position of the vertices on the page may vary from one pictorial representation to another.

Definition

Directed Graph

A directed graph, or digraph, consists of two finite sets: a nonempty set $V(G)$ of vertices and a set $D(G)$ of directed edges, where each is associated with an ordered pair of vertices called its endpoints. If edge $e$ is associated with the pair $(y,w)$ of vertices, then $e$ is said to be the (directed) edge from $y$ to $w$.

Definition

Degree of a Vertex

Let $G$ be a graph and $y$ a vertex of $G$. The degree of $v$, denoted $deg(v)$, equals the number of edges that are incident on $y$, with an edge that is a loop counted twice.
